Pulse Width

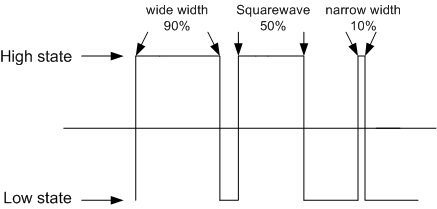

The ratio of the periods that a rectangular wave spends in its high or low states. Pulse widths can be varied from a narrow 10% to a wide 90%. At 50% the rectangular wave is called a square wave.


Click the image to hear an example of waves with varying pulse widths.
